PKOC floor convector - heating




licon pkoc                          licon logo

pkocsymb

Where the PK floor-mounted convector is not sufficient in terms of its output, more productive heat source must be selected. To satisfy this demand, a floor-mounted PKOC convector was designed with tangential fan. The PKOC convector extends usefulness of PK convectors even to areas with higher thermal losses. The speed of fan rotation can be changed fluently in dependence on instant room temperature, which allows the PKOC convector to react flexibly to the temperature demand. The convectors are equipped with 230/12V transformer, installed inside the tub under the cover grid. Maximum service voltage of fans is 12V AC. The stainless design of the convector tub anticipates its location in damp environment, therefore the transformer is, for safety reasons, supplied separately in a mounting box for wall mounting. The turns of the fan can be changed alternately or continuously, depending on the electric control type used – basic  alternately), automatic (continuously). The PKOC model serves for heating only.

•convector with the lowest construction height
•used for heating
•quietest operation at low speed
•possibility of control through BMS (Building Management System)
•can be ordered in Economic, Exclusive or Inox versions
•the convector is intended for dry environment

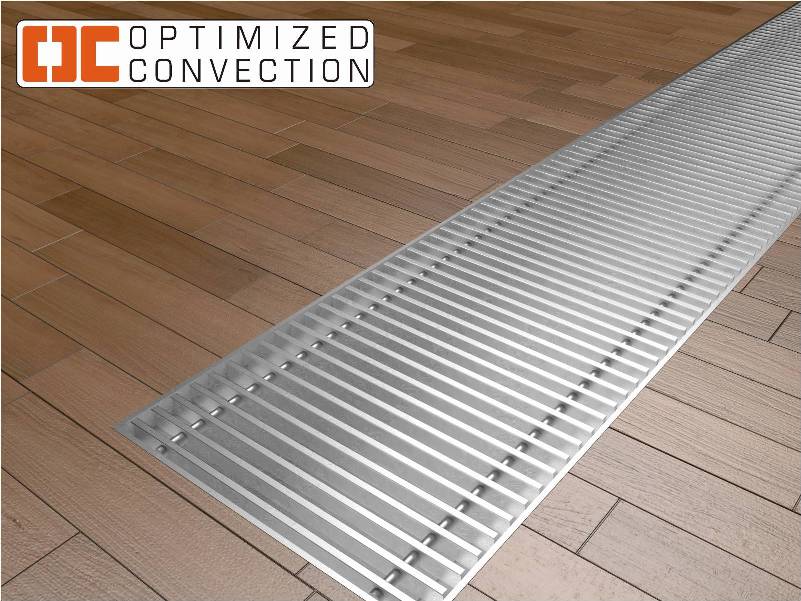

OPTIMISED CONVECTION energy saving motors+very quiet operation

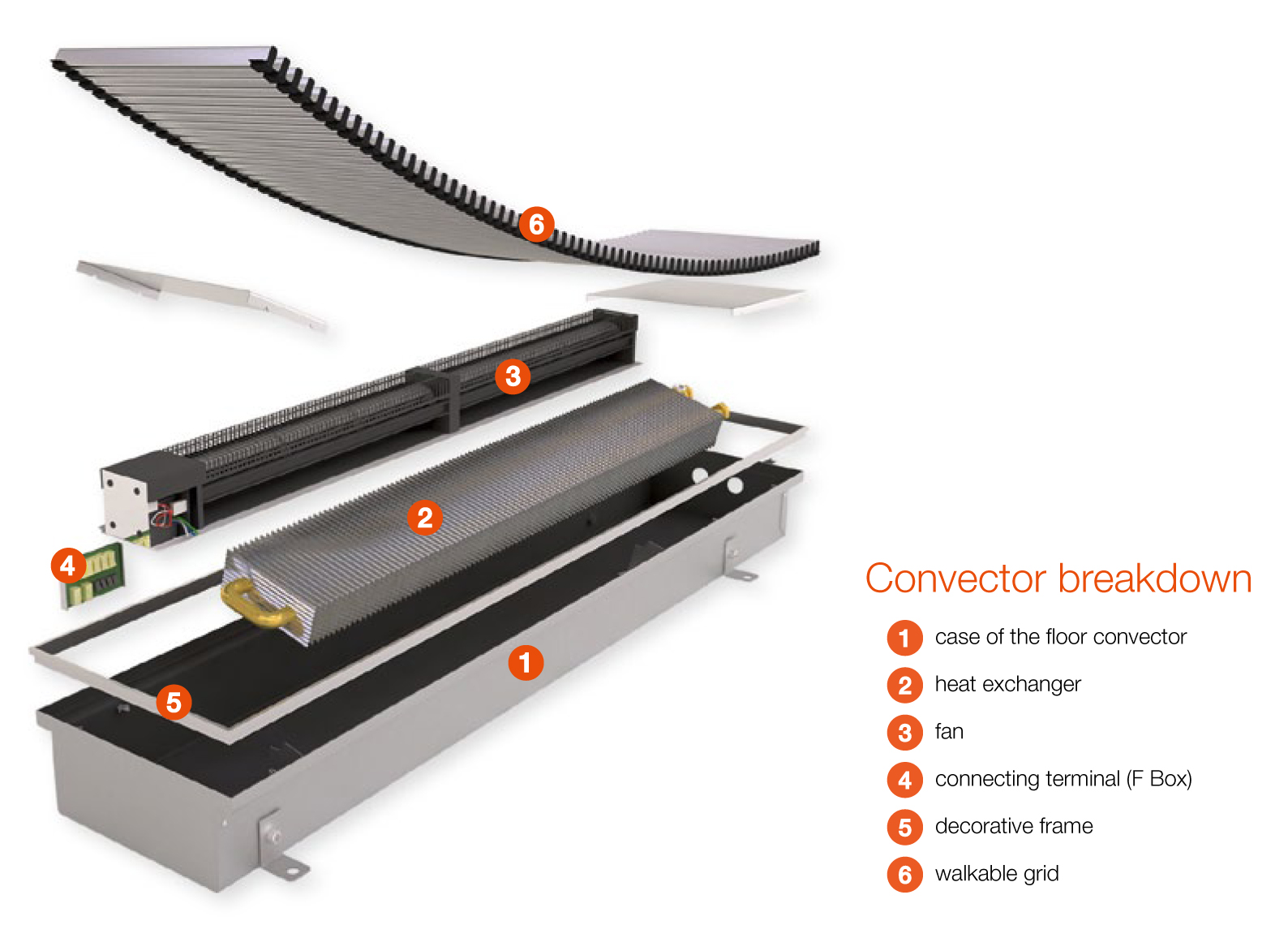

oc breakdown

• PKOC

Version Economic - black coated zinc galvanised steel, heat exchanger without any surface finishes

Version Exclusive - black coated zinc galvanised steel case, black coated exchanger

Inox version - stainless steel unpainted case AISI 304, unpainted exchanger (for dry environment only)

• PKBOC pool design - chemical proof stainless steel AISI 316 for wet environment

Specification
 width (mm) 280, 340, 420
 depth (mm) 70, 90, 110
 lenght (mm) 800, 1200, 1600, 2000, 2400, 2800
 outputs (W) see technical specification pdf
 max.working temperature 110 °C
 connecting thread 2Χ inner G 1/2“



 pdf symb  PKOC /  PKBOC technical specifications

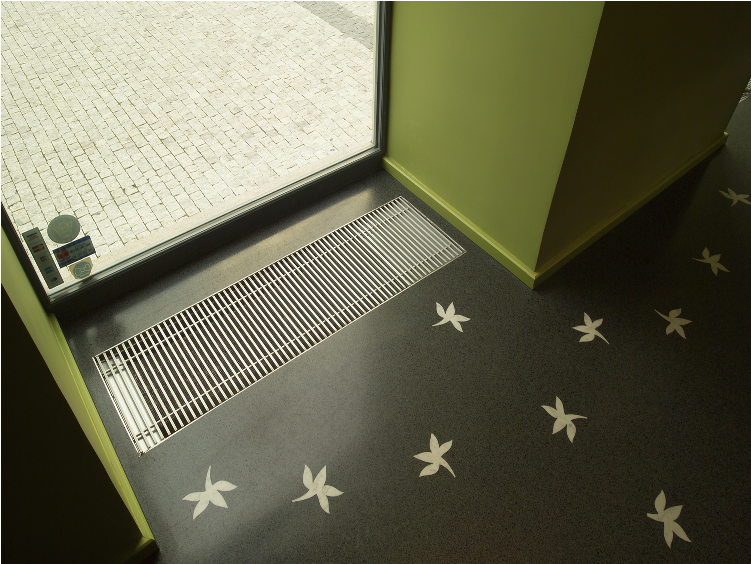

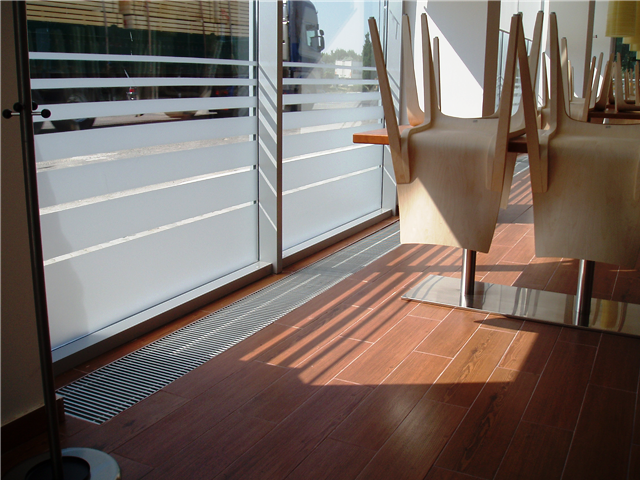

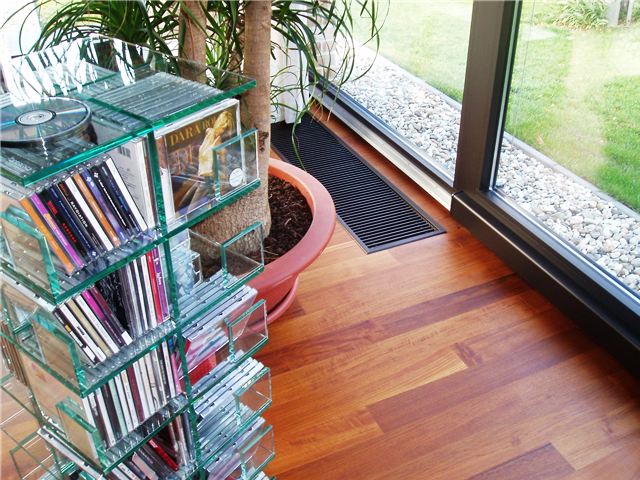

licon pkoc-01   licon pkoc-02   licon pkoc-03
