PKIOC floor convector heating / cooling

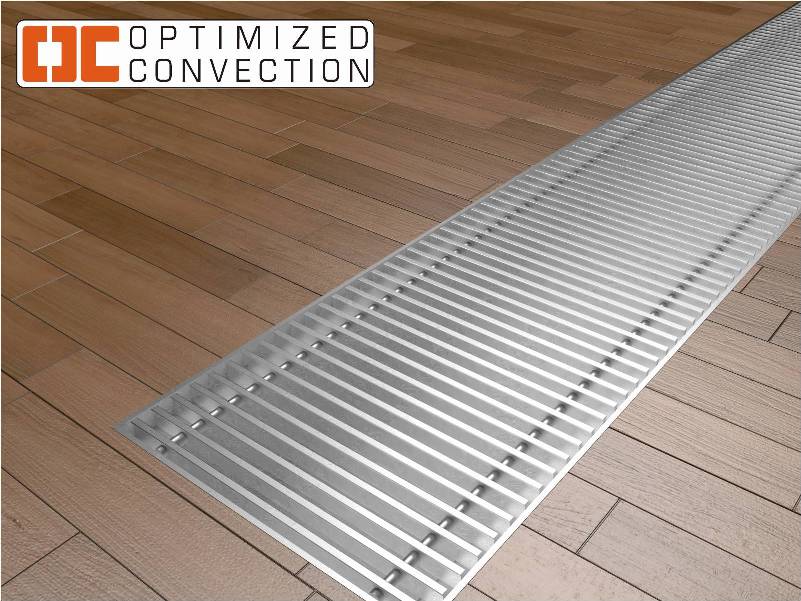

PKIOC floor mounted convector serving for heating or cooling of room. For this purpose a brand new design of Al/Cu of exchanger is used, which was ideally designed both for heating and aftercooling. In case of low construction depth the convector has therefore excellent thermal and cooling outputs, measured in HLK Stuttgart. The tub of the convector is equipped with a unique system of ‘gtub-in-tub’ when a stainless piece is built in the existing steel tub which serves for trapping and drainage of potential condensate.
The fans used are tangential fans with max. 12 V voltage, the regulating system is identical with that of the PKOC fan-coils already produced.
OPTIMISED CONVECTION energy saving motors+very quiet operation
| width (mm) | 200 / 340 |
| depth (mm) | 90 / 130 |
| length (mm) | 800, 1200, 1600, 2000, 2400, 2800 / 1200, 1500, 2000, 2500, 3000 |
| outputs (W) | see technical specification pdf |
| max.working temperature | 110 °C |
| connecting thread | 2Χ inner G 1/2“ |
PKIOC technical specifications
